Panasonic Electronic Components

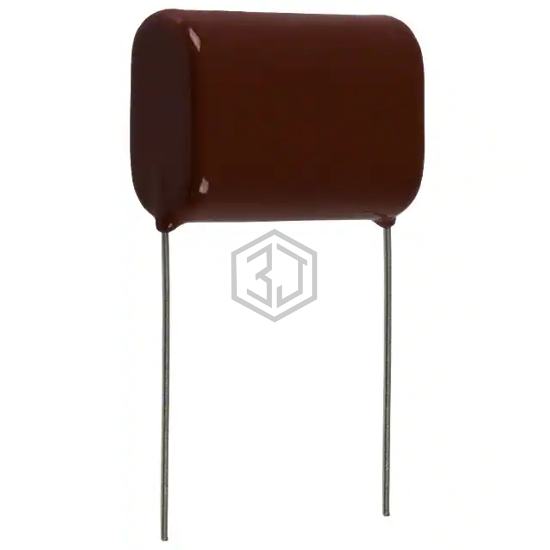

CAP FILM 1.2UF 5% 630VDC RADIAL
ECQ-E6125JFB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 1.2UF 5% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 3,301
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1.2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.531" W (31.00mm x 13.50mm) |
| Height - Seated (Max) | 1.102" (28.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| X2Q2125KT1B0265220125ES0 | Songtian Electronics Co., Ltd - use 4378 | X2 305VAC 1.2UF 10% P=22.5MM W26 | 100% | View |
| 890324027012 | Würth Elektronik | CAP FILM 1.2UF 10% 275VAC RADIAL | 100% | View |
| F340X251230KKP2T0 | Vishay Beyschlag/Draloric/BC Components | MKP F340X2 1,2F 10% 305VAC | 100% | View |
| ECW-FD2W125K | Panasonic Electronic Components | CAP FILM 1.2UF 10% 450VDC RADIAL | 94% | View |
| 930C4W1P2K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1.2UF 10% 400VDC AXIAL | 92% | View |
| MKP385512040JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.2UF 5% 400VDC RADIAL | 92% | View |
Submit your RFQ for ECQ-E6125JFB and get a quote within 24 hours.
