Panasonic Electronic Components

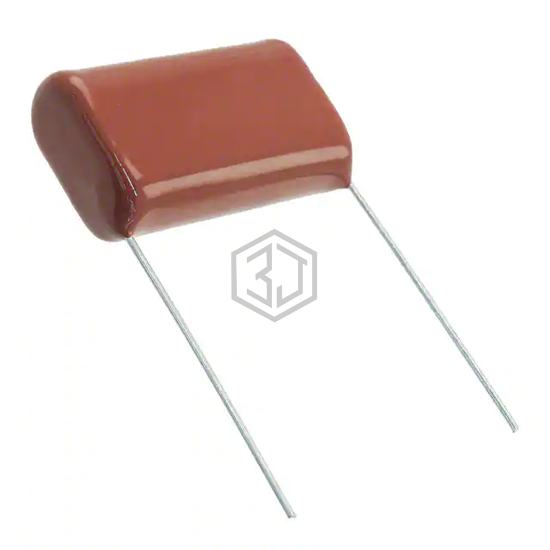

CAP FILM 1UF 10% 630VDC RADIAL
ECQ-E6105KFW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 1UF 10% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 4,577
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.492" W (31.00mm x 12.50mm) |
| Height - Seated (Max) | 1.059" (26.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32923C3105M289 | EPCOS - TDK Electronics | CAP FILM 1UF 20% 630VDC RADIAL | 100% | View |
| 890324026027CS | Würth Elektronik | CAP FILM 1UF 10% 275VAC RADIAL | 100% | View |
| R463R410000M1M | KEMET | CAP FILM 1UF 20% 630VDC RADIAL | 100% | View |
| ECQ-UAAF105M | Panasonic Electronic Components | CAP FILM 1UF 20% 275VAC RADIAL | 100% | View |
| BFC237354105 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 400VDC RADIAL | 92% | View |
| BFC2373FM105MF | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 5% 400VDC RADIAL | 92% | View |
