Panasonic Electronic Components

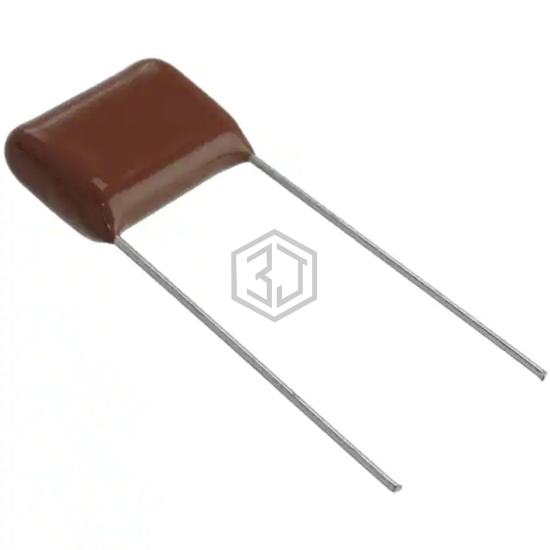

CAP FILM 0.39UF 10% 400VDC RAD
ECQ-E4394RKF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.39UF 10% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 5,033
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.39 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.728" L x 0.295" W (18.50mm x 7.50mm) |
| Height - Seated (Max) | 0.803" (20.40mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC2373FF394MF | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 400VDC RADIAL | 100% | View |
| MKP385E43940JFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 400VDC RAD | 100% | View |
| F339X243930KIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 10% 630VDC RAD | 92% | View |
| BFC237364394 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 630VDC RADIAL | 92% | View |
| ECW-FA2J394J4 | Panasonic Electronic Components | CAP FILM 0.39UF 5% 630VDC RADIAL | 92% | View |
| MKP385E4392BJPM4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 2.5KVDC RAD | 71% | View |
Submit your RFQ for ECQ-E4394RKF and get a quote within 24 hours.
