Panasonic Electronic Components
CAP FILM 2.2UF 10% 400VDC RADIAL

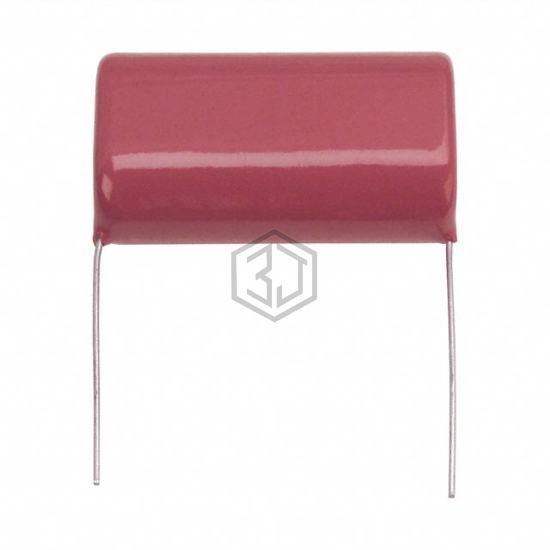

ECQ-E4225KZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2.2UF 10% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 400V, package / case Radial.
In Stock: 2,797
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.673" L x 0.591" W (42.50mm x 15.00mm) |
| Height - Seated (Max) | 1.004" (25.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.516" (38.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-E4225KZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| QXK2G225JTP | Nichicon | CAP FILM 2.2UF 5% 400VDC RAD | 100% | View |
| 225MKP275KE | Cornell Dubilier / Illinois Capacitor | CAP FILM 2.2UF 10% 310VAC RADIAL | 100% | View |
| MKX2AW42206F00KSSD | WIMA | CAP FILM 2.2UF 10% 305VAC RADIAL | 100% | View |
| 73094-22 | Iskra | KNB1560 2U2 10% 275V L4 R27.5 | 92% | View |
| 16540-06 | Iskra | KNB1530 2U2 20% 275V L4 R37.5 H2 | 92% | View |
| ECW-FD2J225JC | Panasonic Electronic Components | CAP FILM 2.2UF 5% 630VDC RADIAL | 92% | View |
Submit your RFQ for ECQ-E4225KZ and get a quote within 24 hours.
