Panasonic Electronic Components

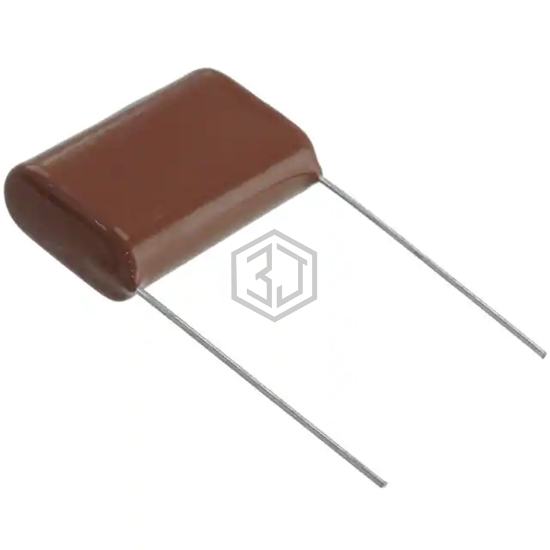

CAP FILM 2.2UF 5% 400VDC RADIAL
ECQ-E4225JFW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2.2UF 5% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 5,861
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.433" W (31.00mm x 11.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKPCJ042205I00KSC9 | WIMA | CAP FILM 2.2UF 10% 630VDC RAD | 92% | View |
| MKT1820522255 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 10% 250VDC RADIAL | 92% | View |
| F461FC225K250Z | KEMET | CAP FILM POLYPROP RAD | 92% | View |
| MKP385E52285KPM4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 850VDC RAD | 87% | View |
| MKP385E52212JPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 1.25KVDC RAD | 80% | View |
| B32529D0225M000 | EPCOS - TDK Electronics | CAP FILM 2.2UF 20% 63VDC RADIAL | 71% | View |
Submit your RFQ for ECQ-E4225JFW and get a quote within 24 hours.
