Panasonic Electronic Components

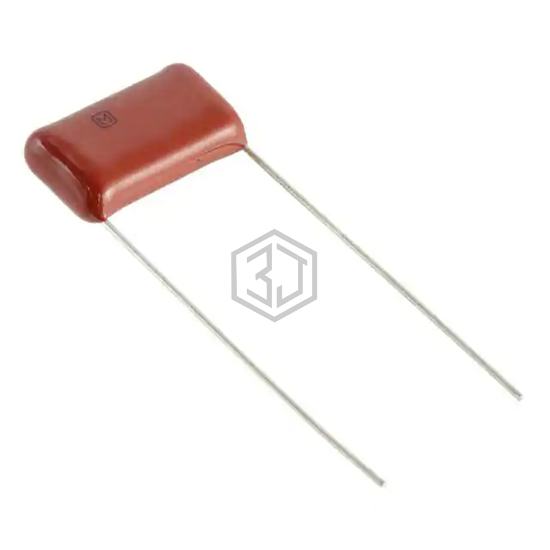

CAP FILM 0.18UF 10% 400VDC RAD
ECQ-E4184KFB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.18UF 10% 400VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 1,512
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.18 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.728" L x 0.213" W (18.50mm x 5.40mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC2370EF184 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 250VDC RADIAL | 92% | View |
| ECQ-E2184JB3 | Panasonic Electronic Components | CAP FILM 0.18UF 5% 250VDC RADIAL | 92% | View |
| MKP385E41810JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 1KVDC RAD | 84% | View |
| MKP385418016JC02H0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 160VDC RADIAL | 84% | View |
| MKP385418100JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 1KVDC RADIAL | 84% | View |
| B32529C1184K289 | EPCOS - TDK Electronics | CAP FILM 0.18UF 10% 100VDC RAD | 75% | View |
Submit your RFQ for ECQ-E4184KFB and get a quote within 24 hours.
