Panasonic Electronic Components

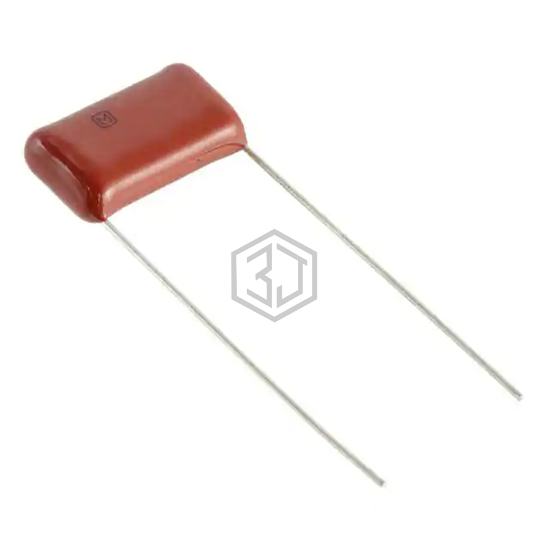

CAP FILM 0.18UF 5% 400VDC RADIAL
ECQ-E4184JFB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.18UF 5% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 1,560
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.18 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.728" L x 0.213" W (18.50mm x 5.40mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R76MI31805050J | KEMET | FILM, RADIAL, PULSE, DOUBLE META | 100% | View |
| MKP385418063JFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 630VDC RADIAL | 92% | View |
| F339X141833KFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 10% 800VDC RAD | 88% | View |
| BFC233863184 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 10% 1KVDC RADIAL | 84% | View |
| MKP385E41812KKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 10% 1.25KVDC RAD | 80% | View |
| BFC236616184 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 63VDC RADIAL | 71% | View |
