Panasonic Electronic Components
CAP FILM 1.5UF 10% 400VDC RADIAL

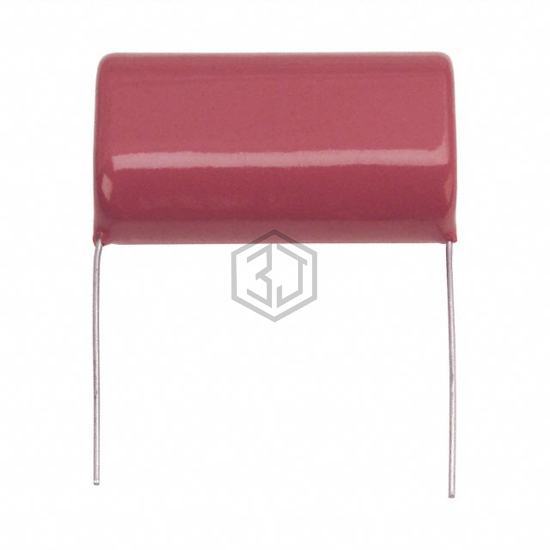

ECQ-E4155KZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 1.5UF 10% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 400V, package / case Radial.
In Stock: 6,359
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1.5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.673" L x 0.492" W (42.50mm x 12.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.516" (38.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-E4155KZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385E51540KKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 10% 400VDC RAD | 100% | View |
| ECQ-E2155JBB | Panasonic Electronic Components | CAP FILM 1.5UF 5% 250VDC RADIAL | 92% | View |
| 75599-22 | Iskra | KNB1560 1U5 10% 275V L30 R27.5 | 92% | View |
| ECW-FD2J155JC | Panasonic Electronic Components | CAP FILM 1.5UF 5% 630VDC RADIAL | 92% | View |
| MKP385515085JPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1.5UF 5% 850VDC RADIAL | 87% | View |
| B32529C0155K289 | EPCOS - TDK Electronics | CAP FILM 1.5UF 10% 63VDC RADIAL | 71% | View |
