Panasonic Electronic Components

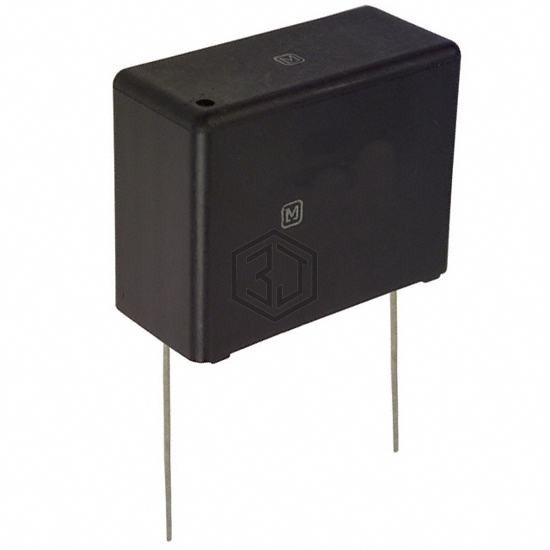

CAP FILM 2.2UF 10% 450VDC RADIAL
ECQ-E2W225KC is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2.2UF 10% 450VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 450V, package / case Radial.
In Stock: 2,396
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 450V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.551" W (31.00mm x 14.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-E2W225KC is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PPB1404220KJL | Nichicon | FILM CAP BOXED RADIAL | 98% | View |
| ECW-FE2J225JA | Panasonic Electronic Components | CAP FILM 2.2UF 5% 630VDC RADIAL | 94% | View |
| 71380-22 | Iskra | KNB1530 2U2 10% 275V L6 R37.5 H2 | 94% | View |
| ECW-FD2J225KQ | Panasonic Electronic Components | CAP FILM 2.2UF 10% 630VDC RADIAL | 94% | View |
| 225PSB850K6J | Cornell Dubilier / Illinois Capacitor | CAP FILM 2.2UF 10% 850VDC RADIAL | 89% | View |
| MKP385522016JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 160VDC RADIAL | 82% | View |
Submit your RFQ for ECQ-E2W225KC and get a quote within 24 hours.
