Panasonic Electronic Components

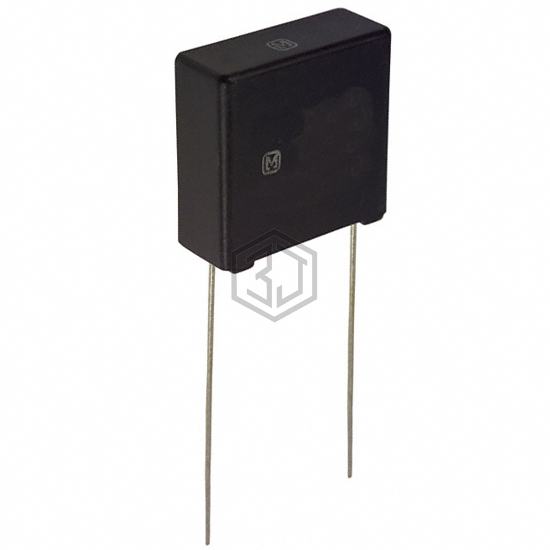

CAP FILM 0.22UF 10% 450VDC RAD
ECQ-E2W224KC is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.22UF 10% 450VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 450V, package / case Radial.
In Stock: 9,184
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 450V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.728" L x 0.276" W (18.50mm x 7.00mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-E2W224KC is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R46KN3220ZR01M | KEMET | 0,22 U 275V | 96% | View |
| 71377-22 | Iskra | KNB1530 U22 10% 275V L30 R15 B9 | 94% | View |
| B32654A1224J000 | EPCOS - TDK Electronics | CAP FILM 0.22UF 5% 1.6KVDC RAD | 77% | View |
| MKT1822422016G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 100VDC RAD | 73% | View |
| BFC237165224 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 100VDC RAD | 73% | View |
| MWS2403220KN | Nichicon | ALUM ELECT CAP CYLINDRICAL AXIAL | 71% | View |
Submit your RFQ for ECQ-E2W224KC and get a quote within 24 hours.
