Panasonic Electronic Components
CAP FILM 1UF 10% 450VDC RADIAL

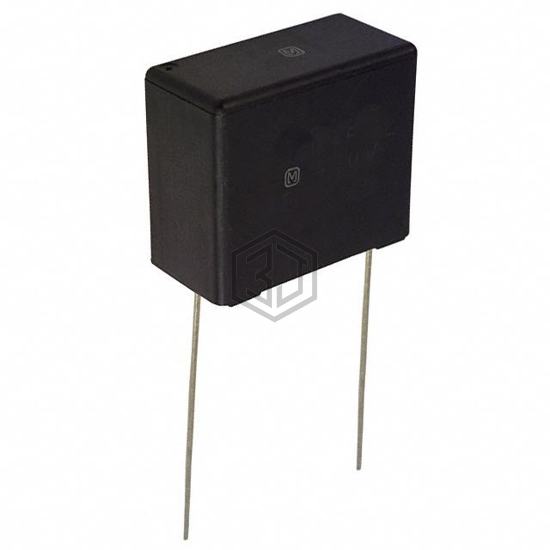

ECQ-E2W105KC is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 1UF 10% 450VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 450V, package / case Radial.
In Stock: 7,192
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 450V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.004" L x 0.492" W (25.50mm x 12.50mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-E2W105KC is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R46KN4100JPN2M | KEMET | CAP FILM 1UF 20% 560VDC RADIAL | 96% | View |
| BFC233924105 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 20% 630VDC RADIAL | 94% | View |
| F339X251030KKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 10% 630VDC RADIAL | 94% | View |
| 12453-06 | Iskra | KNB1560 1U 10% 275V L3 R22.5 | 94% | View |
| F1778510K2ILB0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 10% 630VDC RADIAL | 94% | View |
| MKP1845510165 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1UF 10% 160VDC AXIAL | 82% | View |
Submit your RFQ for ECQ-E2W105KC and get a quote within 24 hours.
