Panasonic Electronic Components

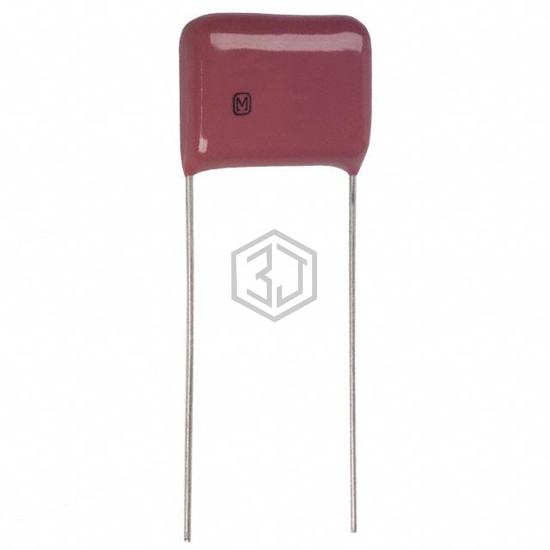

CAP FILM 0.047UF 20% 250VAC RAD
ECQ-E2A473MW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.047UF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 3,076
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.047 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.669" L x 0.295" W (17.00mm x 7.50mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.531" (13.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | - |
| Features | - |
ECQ-E2A473MW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32653A0473J289 | EPCOS - TDK Electronics | CAP FILM 0.047UF 5% 1KVDC RADIAL | 100% | View |
| F461BB473K400C | KEMET | CAP FILM POLYPROP RAD | 98% | View |
| 75942-01 | Iskra | KNB2520 U047 20% 300V L3 R22.5 | 97% | View |
| MKP385E34785KFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 850VDC RAD | 97% | View |
| DPFF4S47J-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.047UF 5% 400VDC RAD | 96% | View |
| F1778347K3DCB0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 630VDC RAD | 96% | View |
Submit your RFQ for ECQ-E2A473MW and get a quote within 24 hours.
