Panasonic Electronic Components

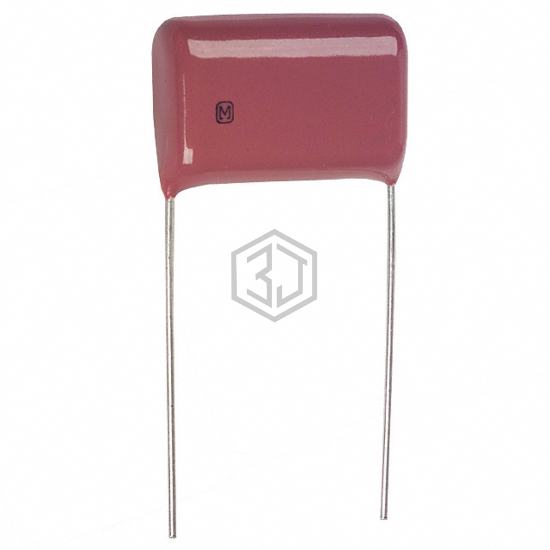

CAP FILM 0.22UF 20% 250VAC RAD
ECQ-E2A224MW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.22UF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 6,161
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.945" L x 0.413" W (24.00mm x 10.50mm) |
| Height - Seated (Max) | 0.748" (19.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.807" (20.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | - |
| Features | - |
ECQ-E2A224MW is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PWS1633220KJ | Nichicon | FILM CAP CYLINDRICAL AXIAL | 97% | View |
| 20071-06 | Iskra | KNB1560 U22 20% 300V L4 R15 | 97% | View |
| QXK2G224KTP7FM | Nichicon | CAP FILM 0.22UF 10% 400VDC RAD | 96% | View |
| F339X242230KII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 630VDC RAD | 96% | View |
| R75II3220AA40J | KEMET | CAP FILM 0.22UF 5% 250VDC RADIAL | 92% | View |
| MKP385422016JD02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 160VDC RADIAL | 85% | View |
Submit your RFQ for ECQ-E2A224MW and get a quote within 24 hours.
