Panasonic Electronic Components

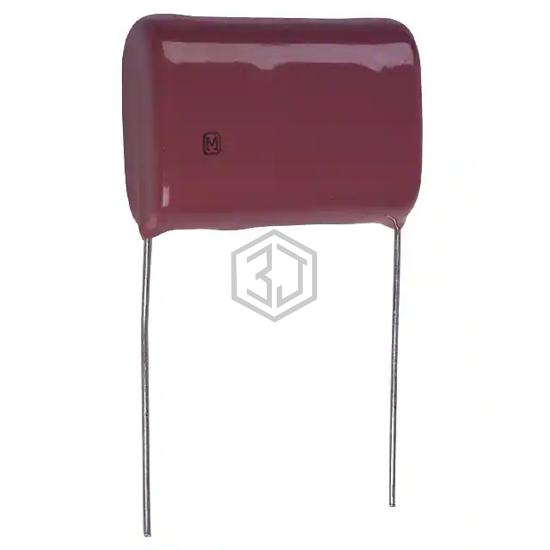

CAP FILM 8.2UF 10% 250VDC RADIAL
ECQ-E2825KF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 8.2UF 10% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 3,492
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 150V |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.563" W (31.00mm x 14.30mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E2825JFB | Panasonic Electronic Components | CAP FILM 8.2UF 5% 250VDC RADIAL | 100% | View |
| MKP385582025JKM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8.2UF 5% 250VDC RADIAL | 99% | View |
| MKP385582025JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8.2UF 5% 250VDC RADIAL | 99% | View |
| MKP385582016JPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8.2UF 5% 160VDC RADIAL | 90% | View |
| ECQ-E1825JFB | Panasonic Electronic Components | CAP FILM 8.2UF 5% 100VDC RADIAL | 84% | View |
| MKP385E58263JPM4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8.2UF 5% 630VDC RAD | 82% | View |
Submit your RFQ for ECQ-E2825KF and get a quote within 24 hours.
