Panasonic Electronic Components
CAP FILM 6.8UF 5% 250VDC RADIAL

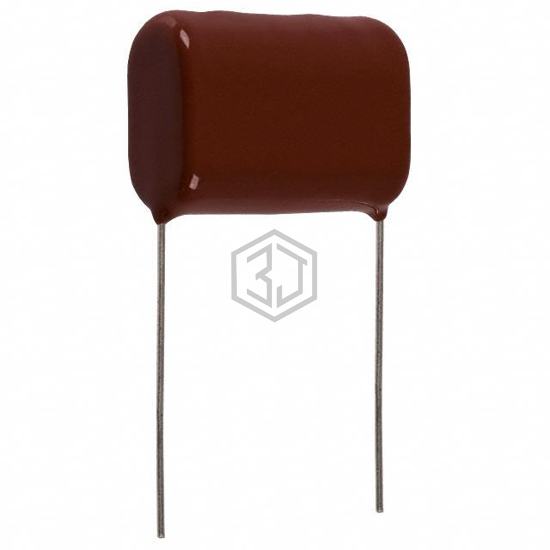

ECQ-E2685JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 6.8UF 5% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 53
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6.8 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 150V |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.512" W (31.00mm x 13.00mm) |
| Height - Seated (Max) | 0.941" (23.90mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 685MMR250K | Cornell Dubilier / Illinois Capacitor | CAP FILM 6.8UF 10% 250VDC RADIAL | 99% | View |
| QXK2E685JTP | Nichicon | CAP FILM 6.8UF 5% 250VDC RAD | 97% | View |
| B32674D4685K000 | EPCOS - TDK Electronics | CAP FILM 6.8UF 10% 450VDC RADIAL | 90% | View |
| ECQ-UAAF685KA | Panasonic Electronic Components | CAP FILM 6.8UF 10% 275VAC RADIAL | 89% | View |
| B32523Q1685J189 | EPCOS - TDK Electronics | CAP FILM 6.8UF 5% 100VDC RADIAL | 75% | View |
| MKP385568085JYP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6.8UF 5% 850VDC RADIAL | 74% | View |
Submit your RFQ for ECQ-E2685JF and get a quote within 24 hours.
