Panasonic Electronic Components
CAP FILM 0.068UF 10% 250VDC RAD

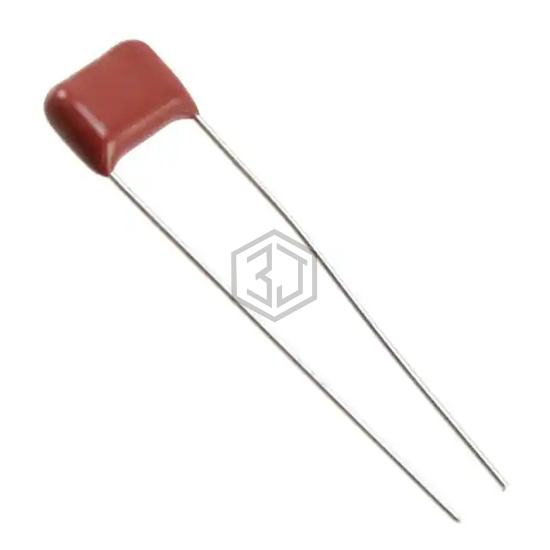

ECQ-E2683KF9 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.068UF 10% 250VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 6,530
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.068 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.406" L x 0.177" W (10.30mm x 4.50mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385368025JB02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 5% 250VDC RAD | 100% | View |
| R75MD2680DQA0K | KEMET | CAP FILM AUTO POLYPROP RAD | 92% | View |
| A70PQ2680AA00J | KEMET | CAP FILM 0.068UF 5% 630VDC AXIAL | 84% | View |
| B32529C1683J189 | EPCOS - TDK Electronics | CAP FILM 0.068UF 5% 100VDC RAD | 84% | View |
| 15183-06 | Iskra | KNB1560 U068 10% 300V L30 R15 | 82% | View |
| F339X136848KFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 10% 1KVDC RAD | 75% | View |
