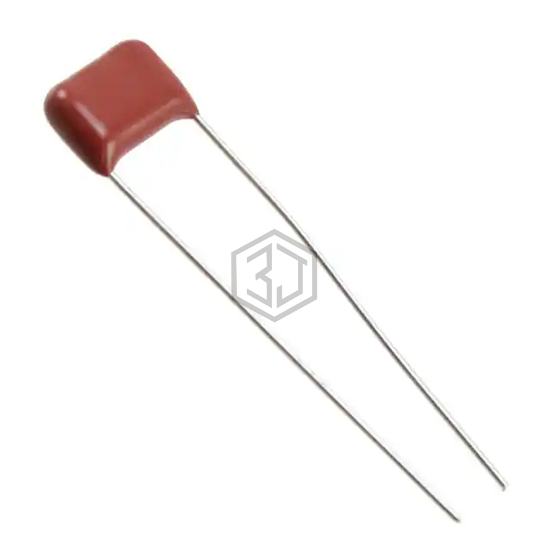

Panasonic Electronic Components
CAP FILM 0.068UF 5% 250VDC RAD
ECQ-E2683JFW is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.068UF 5% 250VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 4,957
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.068 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.406" L x 0.177" W (10.30mm x 4.50mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKT1820368256 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 20% 250VDC RAD | 100% | View |
| MKP383368025JC02R0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 5% 250VDC RAD | 100% | View |
| MKT1818368255 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 10% 250VDC RAD | 100% | View |
| R66ID2680AA6AK | KEMET | CAP FILM METAL RAD POLYESTER | 100% | View |
| MKP383368040JFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 5% 400VDC RAD | 92% | View |
| MKP385E36810KI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 10% 1KVDC RAD | 75% | View |
