Panasonic Electronic Components

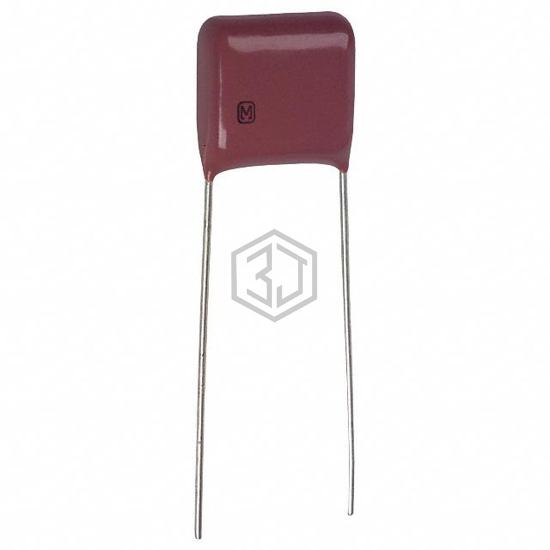

CAP FILM 0.56UF 5% 250VDC RADIAL
ECQ-E2564RJB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.56UF 5% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 4,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.56 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.484" L x 0.264" W (12.30mm x 6.70mm) |
| Height - Seated (Max) | 0.665" (16.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E2564JFW | Panasonic Electronic Components | CAP FILM 0.56UF 5% 250VDC RADIAL | 100% | View |
| ECQ-E2564RKF | Panasonic Electronic Components | CAP FILM 0.56UF 10% 250VDC RAD | 100% | View |
| MKP383456025JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 250VDC RADIAL | 100% | View |
| ECW-FA2J564J4 | Panasonic Electronic Components | CAP FILM 0.56UF 5% 630VDC RADIAL | 84% | View |
| ECQ-E1564JF | Panasonic Electronic Components | CAP FILM 0.56UF 5% 100VDC RADIAL | 84% | View |
| BFC237324564 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 100VDC RADIAL | 84% | View |
Submit your RFQ for ECQ-E2564RJB and get a quote within 24 hours.
