Panasonic Electronic Components

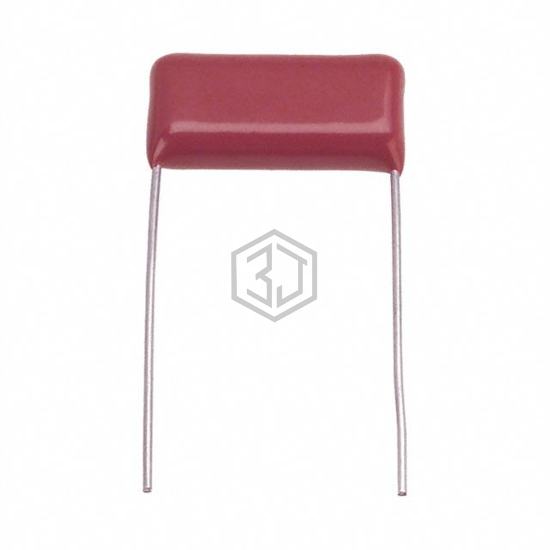

CAP FILM 0.47UF 10% 250VDC RAD
ECQ-E2474KS is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.47UF 10% 250VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 250V, package / case Radial.
In Stock: 5,533
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.906" L x 0.256" W (23.00mm x 6.50mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.787" (20.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-E2474KS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| QXP2E474KRPT | Nichicon | CAP FILM 0.47UF 10% 250VDC RAD | 100% | View |
| MKP18444474000 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 400VAC RADIAL | 100% | View |
| B32673Z4474K000 | EPCOS - TDK Electronics | CAP FILM 0.47UF 10% 450VDC RAD | 90% | View |
| B32923H3474K000 | EPCOS - TDK Electronics | CAP FILM 0.47UF 10% 630VDC RAD | 84% | View |
| BFC236626474 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 100VDC RADIAL | 84% | View |
| MKP385E44712JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 1.25KVDC RAD | 71% | View |
Submit your RFQ for ECQ-E2474KS and get a quote within 24 hours.
