Panasonic Electronic Components
CAP FILM 2.7UF 5% 250VDC RADIAL

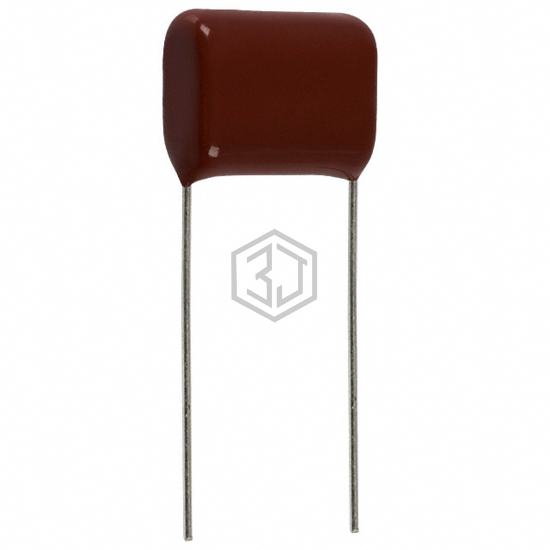

ECQ-E2275JBB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2.7UF 5% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 8,559
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.7 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.819" L x 0.366" W (20.80mm x 9.30mm) |
| Height - Seated (Max) | 0.854" (21.70mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 930C4W2P7K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 2.7UF 10% 400VDC AXIAL | 92% | View |
| MKP385527016JIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 160VDC RADIAL | 92% | View |
| BFC2373FF275MK | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 400VDC RADIAL | 92% | View |
| BFC237325275 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 10% 100VDC RADIAL | 84% | View |
| MKP385527085JPP4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 850VDC RADIAL | 78% | View |
| MKP385E52785KPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 10% 850VDC RAD | 78% | View |
Submit your RFQ for ECQ-E2275JBB and get a quote within 24 hours.
