Panasonic Electronic Components
CAP FILM 0.27UF 10% 250VDC RAD

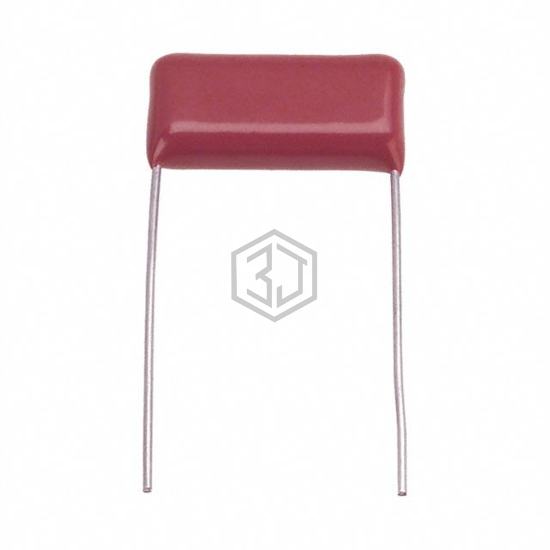

ECQ-E2274KS is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.27UF 10% 250VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 250V, package / case Radial.
In Stock: 8,066
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.27 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.906" L x 0.217" W (23.00mm x 5.50mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.787" (20.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-E2274KS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F461BC274M250Z | KEMET | .270UF 250V | 100% | View |
| ECW-FD2W274JB | Panasonic Electronic Components | CAP FILM 0.27UF 5% 450VDC RADIAL | 90% | View |
| F17724272000 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 10% 630VDC RAD | 84% | View |
| MKP385E42785KKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 10% 850VDC RAD | 78% | View |
| BFC241642704 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 2% 63VDC RADIAL | 76% | View |
| MKP385427250JPP4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 2.5KVDC RAD | 71% | View |
Submit your RFQ for ECQ-E2274KS and get a quote within 24 hours.
