Panasonic Electronic Components
CAP FILM 2.2UF 5% 250VDC RADIAL

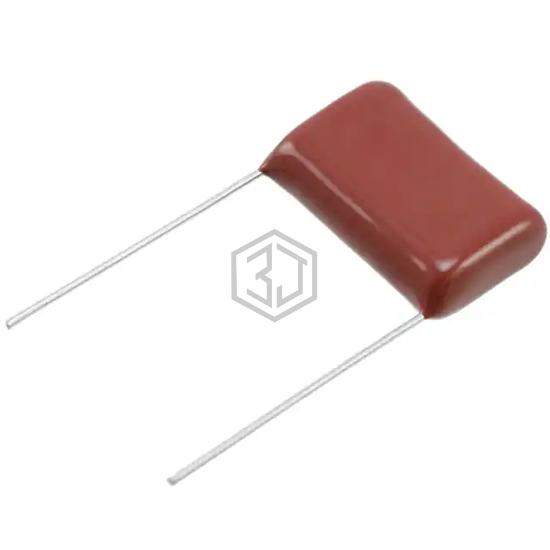

ECQ-E2225JFB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2.2UF 5% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 9,685
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.335" W (26.00mm x 8.50mm) |
| Height - Seated (Max) | 0.839" (21.30mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PPB1254220KHL | Nichicon | FILM CAP BOXED RADIAL | 100% | View |
| MKP385522016JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 5% 160VDC RADIAL | 92% | View |
| 73014-22 | Iskra | KNB1560 2U2 10% 275V L25 R27.5 | 84% | View |
| ECW-FD2J225JQ | Panasonic Electronic Components | CAP FILM 2.2UF 5% 630VDC RADIAL | 84% | View |
| F339MX252231MIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.2UF 20% 630VDC RADIAL | 84% | View |
| B32776H6225K000 | EPCOS - TDK Electronics | CAP FILM 2.2UF 10% 1.5KVDC RAD | 71% | View |
Submit your RFQ for ECQ-E2225JFB and get a quote within 24 hours.
