Panasonic Electronic Components

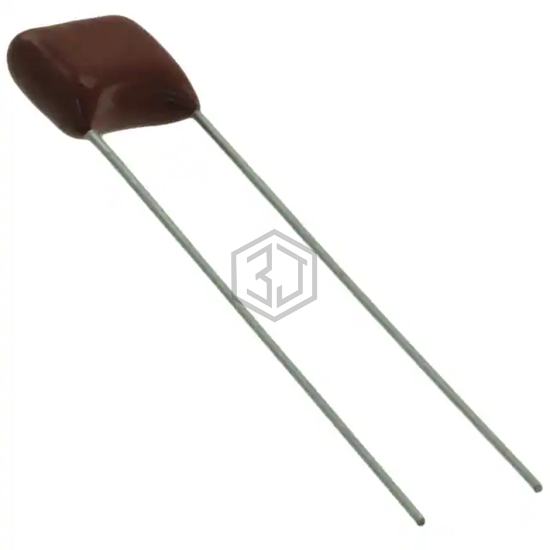

CAP FILM 0.015UF 10% 250VDC RAD
ECQ-E2153KBB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.015UF 10% 250VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 2,102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.015 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.311" L x 0.165" W (7.90mm x 4.20mm) |
| Height - Seated (Max) | 0.476" (12.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-UBAF153K | Panasonic Electronic Components | CAP FILM 0.015UF 10% 300VAC RADI | 100% | View |
| ECQ-UAAF153K | Panasonic Electronic Components | CAP FILM 0.015UF 10% 275VAC RADI | 100% | View |
| MKT1817315255W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 10% 250VDC RAD | 100% | View |
| ECQ-E4153JF9 | Panasonic Electronic Components | CAP FILM 0.015UF 5% 400VDC RAD | 92% | View |
| BFC246731153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 400VDC RAD | 92% | View |
| F339MX231531MCA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 20% 630VDC RAD | 84% | View |
Submit your RFQ for ECQ-E2153KBB and get a quote within 24 hours.
