Panasonic Electronic Components

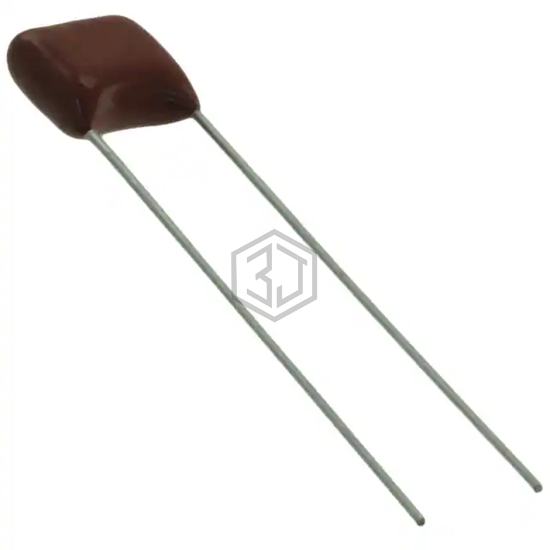

CAP FILM 0.015UF 5% 250VDC RAD
ECQ-E2153JBB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.015UF 5% 250VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 7,278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.311" L x 0.165" W (7.90mm x 4.20mm) |
| Height - Seated (Max) | 0.476" (12.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E2153KF3 | Panasonic Electronic Components | CAP FILM 0.015UF 10% 250VDC RAD | 100% | View |
| QXK2G153KTP7FG | Nichicon | CAP FILM 0.015UF 10% 400VDC RAD | 92% | View |
| WMF1S15K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.015UF 100VDC AXIAL | 84% | View |
| BFC236866153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 630VDC RAD | 84% | View |
| BFC233814153 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 20% 1KVDC RAD | 75% | View |
| F340Y231530JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.015UF 5% 1KVDC RAD | 75% | View |
Submit your RFQ for ECQ-E2153JBB and get a quote within 24 hours.
