Panasonic Electronic Components
CAP FILM 10000PF 10% 250VDC RAD

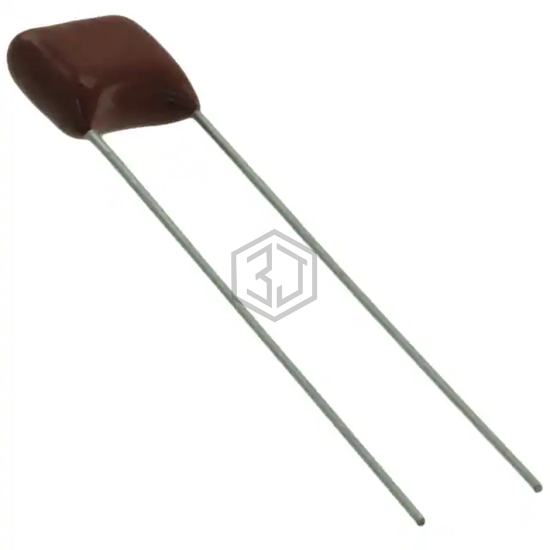

ECQ-E2103KBB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 10000PF 10% 250VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 3,679
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.311" L x 0.165" W (7.90mm x 4.20mm) |
| Height - Seated (Max) | 0.476" (12.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32520C3103K | EPCOS - TDK Electronics | CAP FILM 10000PF 10% 250VDC RAD | 100% | View |
| MKS4F021002B00JA00 | WIMA | CAP FILM 10000PF 5% 250VDC RAD | 100% | View |
| PHE426KK5100JR05 | KEMET | CAP FILM RAD | 92% | View |
| BFC233627103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 10% 630VDC RAD | 84% | View |
| ECW-H10103HVB | Panasonic Electronic Components | CAP FILM 10000PF 3% 1KVDC RADIAL | 75% | View |
| MKP385310125JDI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 5% 1.25KVDC RAD | 71% | View |
