Panasonic Electronic Components
CAP FILM 6.8UF 10% 100VDC RADIAL

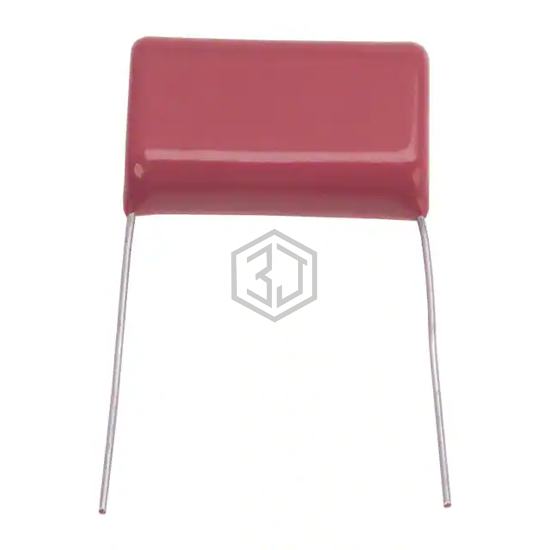

ECQ-E1685KZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 6.8UF 10% 100VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 100V, package / case Radial.
In Stock: 1,451
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6.8 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.201" L x 0.512" W (30.50mm x 13.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
ECQ-E1685KZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC236823685 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6.8UF 10% 100VDC RADIAL | 100% | View |
| MKT1813568014R | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6.8UF 5% 100VDC AXIAL | 100% | View |
| R75MW468050H2J | KEMET | CAP FILM 6.8UF 5% 400VDC RADIAL | 75% | View |
| R71PR468050H6K | KEMET | FILM, RADIAL, PULSE, SINGLE META | 71% | View |
| MKP385568085JYI5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 6.8UF 5% 850VDC RADIAL | 71% | View |
| F340X256830KPI2T0 | Vishay Beyschlag/Draloric/BC Components | MKP F340X2 6,8F 10% 305VAC | 71% | View |
Submit your RFQ for ECQ-E1685KZ and get a quote within 24 hours.
