Panasonic Electronic Components

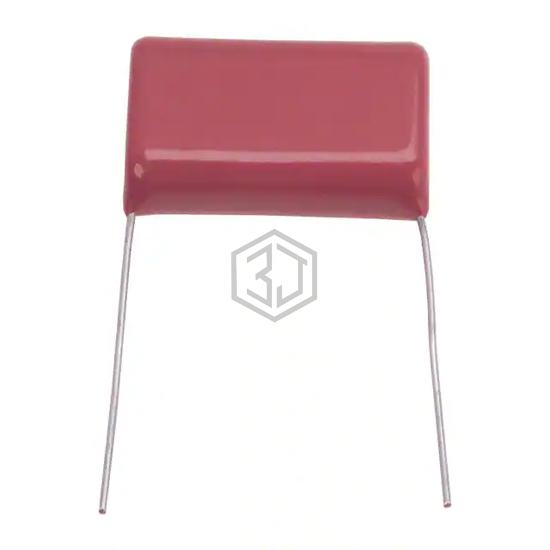

CAP FILM 5.6UF 10% 100VDC RADIAL
ECQ-E1565KZ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 5.6UF 10% 100VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 100V, package / case Radial.
In Stock: 134
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5.6 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.201" L x 0.492" W (30.50mm x 12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
Submit your RFQ for ECQ-E1565KZ and get a quote within 24 hours.
