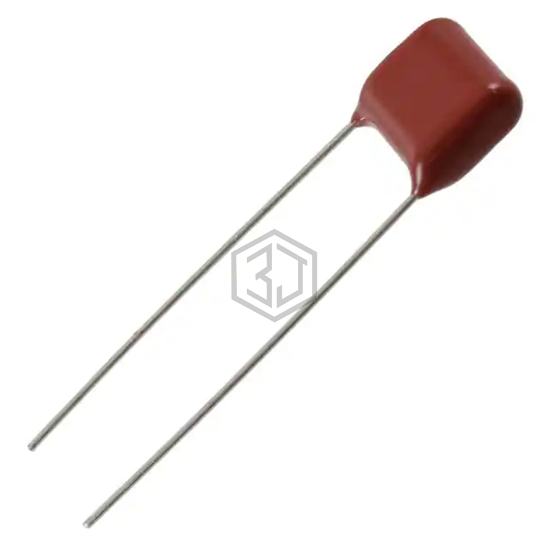

Panasonic Electronic Components
CAP FILM 0.56UF 5% 100VDC RADIAL
ECQ-E1564JFB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.56UF 5% 100VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 100V, package / case Radial.
In Stock: 6,118
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.56 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
| Height - Seated (Max) | 0.626" (15.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC246705564 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 100VDC RADIAL | 100% | View |
| B32529C0564J000 | EPCOS - TDK Electronics | CAP FILM 0.56UF 5% 63VDC RADIAL | 92% | View |
| BFC247075564 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 10% 63VDC RADIAL | 92% | View |
| BFC246863564 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 10% 250VDC RAD | 84% | View |
| BFC237356564 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 400VDC RADIAL | 75% | View |
| ECW-FD2W564KB | Panasonic Electronic Components | CAP FILM 0.56UF 10% 450VDC RAD | 73% | View |
Submit your RFQ for ECQ-E1564JFB and get a quote within 24 hours.
