Panasonic Electronic Components

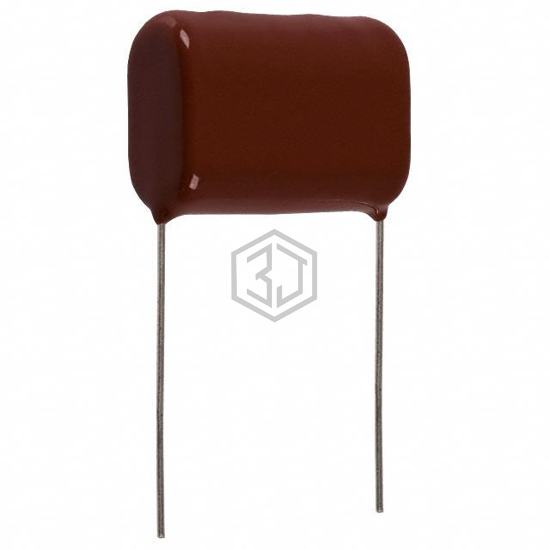

CAP FILM 0.18UF 10% 1.25KVDC RAD
ECQ-E12184KF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.18UF 10% 1.25KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1250V (1.25kV), package / case Radial.
In Stock: 8,076
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.18 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.512" W (31.00mm x 13.00mm) |
| Height - Seated (Max) | 1.024" (26.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-F6184JL | Panasonic Electronic Components | CAP FILM 0.18UF 5% 630VDC RADIAL | 83% | View |
| MKP385E41863JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 630VDC RAD | 83% | View |
| ECQ-E6184KF | Panasonic Electronic Components | CAP FILM 0.18UF 10% 630VDC RAD | 81% | View |
| BFC2373FC184MD | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 5% 400VDC RADIAL | 81% | View |
| ECQ-E2184JB | Panasonic Electronic Components | CAP FILM 0.18UF 5% 250VDC RADIAL | 78% | View |
| MKP385E4182BKPM4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.18UF 2.5KVDC RAD | 68% | View |
Submit your RFQ for ECQ-E12184KF and get a quote within 24 hours.
