Panasonic Electronic Components
CAP FILM 10UF 5% 100VDC RADIAL

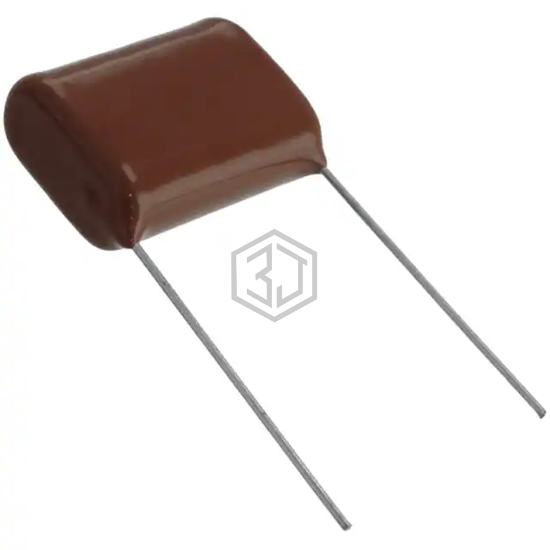

ECQ-E1106JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 10UF 5% 100VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 100V, package / case Radial.
In Stock: 2,522
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 63V |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.453" W (26.00mm x 11.50mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1D051007G00KSSD | WIMA | MKP 10 10.0 UF 100 VDC 20X39.5X4 | 100% | View |
| 160106K63P-F | Cornell Dubilier Electronics (CDE) | CAP FILM 10UF 10% 63VDC RADIAL | 87% | View |
| R60DR5100AA30J | KEMET | CAP FILM AUTOMOTIVE | 87% | View |
| MKP1848C61060JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 600VDC RADIAL | 71% | View |
| MKP1847H61035JP5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 700VDC RADIAL | 56% | View |
| F339MX261031KPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 10% 630VDC RADIAL | 56% | View |
Submit your RFQ for ECQ-E1106JF and get a quote within 24 hours.
