Panasonic Electronic Components

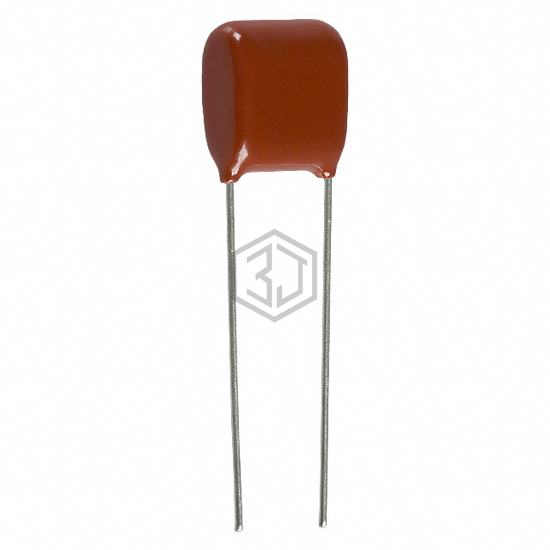

CAP FILM 0.056UF 5% 200VDC RAD
ECQ-B2563JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.056UF 5% 200VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 200V, package / case Radial.
In Stock: 4,544
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.056 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 200V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.531" L x 0.236" W (13.50mm x 6.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B2563JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC237241563 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 10% 250VDC RAD | 96% | View |
| BFC247021563 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 10% 100VDC RAD | 88% | View |
| BFC236725563 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 10% 100VDC RAD | 88% | View |
| 185563K63RAB-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.056UF 10% 63VDC RAD | 79% | View |
| B32672L7563J000 | EPCOS - TDK Electronics | CAP FILM 0.056UF 5% 1.3KVDC RAD | 71% | View |
| MKP385E35610KFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.056UF 10% 1KVDC RAD | 71% | View |
Submit your RFQ for ECQ-B2563JF and get a quote within 24 hours.
