Panasonic Electronic Components

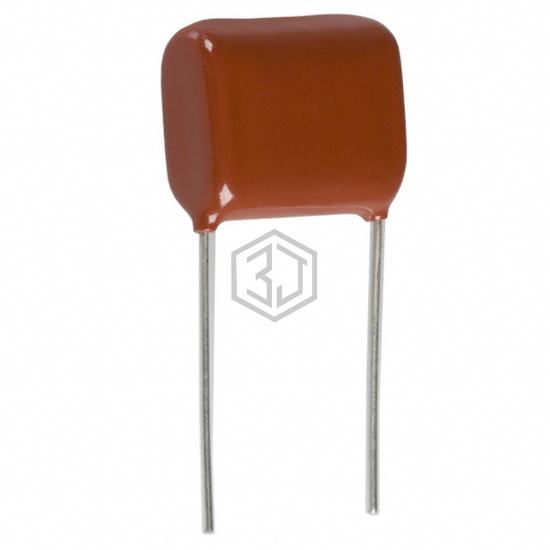

CAP FILM 0.39UF 5% 200VDC RADIAL
ECQ-B2394JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.39UF 5% 200VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 200V, package / case Radial.
In Stock: 6,008
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.39 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 200V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.945" L x 0.394" W (24.00mm x 10.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.787" (20.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B2394JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-UAAF394KA | Panasonic Electronic Components | CAP FILM 0.39UF 10% 275VAC RADIA | 100% | View |
| 930C6P39K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.39UF 10% 630VDC AXIAL | 80% | View |
| F862BS394K310ZV054 | KEMET | CAP FILM 0.39UF 10% 630VDC RAD | 80% | View |
| R75PI33905030J | KEMET | CAP FILM 0.39UF 5% 630VDC RADIAL | 80% | View |
| BFC236915394 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 10% 63VDC RADIAL | 79% | View |
| MKP385439100JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 1KVDC RADIAL | 71% | View |
Submit your RFQ for ECQ-B2394JF and get a quote within 24 hours.
