Panasonic Electronic Components

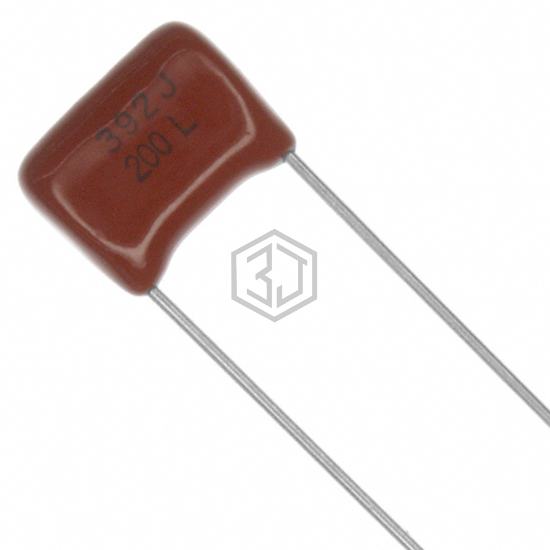

CAP FILM 3900PF 5% 200VDC RADIAL
ECQ-B2392JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 3900PF 5% 200VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 200V, package / case Radial.
In Stock: 4,539
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 200V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.433" L x 0.177" W (11.00mm x 4.50mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B2392JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKT1817239256W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 20% 250VDC RAD | 96% | View |
| BFC247059392 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 400VDC RADIAL | 88% | View |
| B32529C0392K000 | EPCOS - TDK Electronics | CAP FILM 3900PF 10% 63VDC RADIAL | 79% | View |
| BFC238340392 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 1.4KVDC RAD | 71% | View |
| MKP385E2391AJFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 1.6KVDC RAD | 71% | View |
| BFC238364392 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3900PF 5% 2KVDC RADIAL | 71% | View |
Submit your RFQ for ECQ-B2392JF and get a quote within 24 hours.
