Panasonic Electronic Components

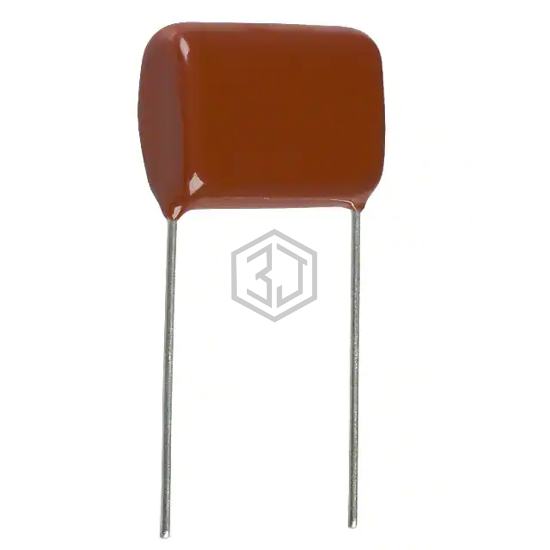

CAP FILM 0.27UF 5% 200VDC RADIAL
ECQ-B2274JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.27UF 5% 200VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 200V, package / case Radial.
In Stock: 6,924
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.27 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 200V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.945" L x 0.315" W (24.00mm x 8.00mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.787" (20.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B2274JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F461BC274J250A | KEMET | CAP FILM POLYPROP RAD | 96% | View |
| BFC236627274 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 100VDC RADIAL | 88% | View |
| 16202-06 | Iskra | KNB1560 U27 10% 275V L3 R15 | 80% | View |
| MKP385E42763KFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 10% 630VDC RAD | 80% | View |
| 167274K63A-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.27UF 10% 63VDC RADIAL | 79% | View |
| MKP385427100JI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 1KVDC RADIAL | 71% | View |
Submit your RFQ for ECQ-B2274JF and get a quote within 24 hours.
