Panasonic Electronic Components

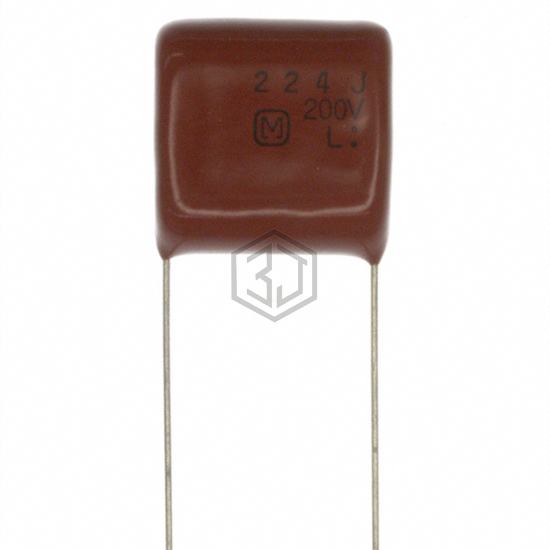

CAP FILM 0.22UF 5% 200VDC RADIAL
ECQ-B2224JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.22UF 5% 200VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 200V, package / case Radial.
In Stock: 4,092
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 200V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.748" L x 0.354" W (19.00mm x 9.00mm) |
| Height - Seated (Max) | 0.768" (19.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B2224JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32520C3224M000 | EPCOS - TDK Electronics | CAP FILM 0.22UF 20% 250VDC RAD | 96% | View |
| DME4P22K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.22UF 10% 400VDC RAD | 88% | View |
| F17724222901 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 630VDC RAD | 80% | View |
| 18404-06 | Iskra | KNB1560 U22 20% 275V L30 R15 M | 80% | View |
| BFC233626224 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 630VDC RAD | 80% | View |
| MKT1820422106 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 20% 1KVDC RADIAL | 71% | View |
Submit your RFQ for ECQ-B2224JF and get a quote within 24 hours.
