Panasonic Electronic Components

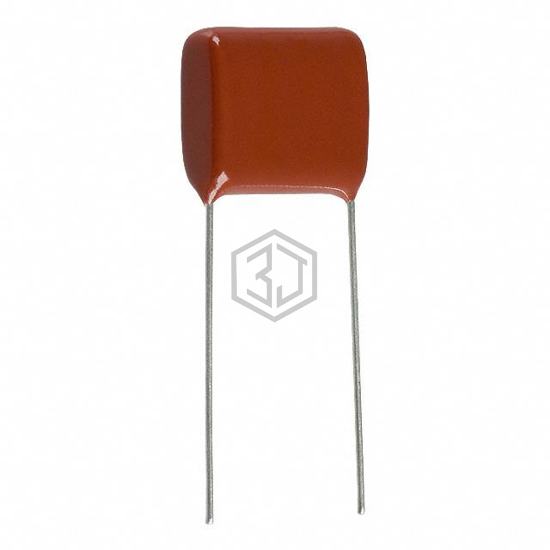

CAP FILM 0.12UF 5% 200VDC RADIAL
ECQ-B2124JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.12UF 5% 200VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 200V, package / case Radial.
In Stock: 8,880
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.12 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 200V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.748" L x 0.256" W (19.00mm x 6.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B2124JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC2370EE124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 10% 250VDC RAD | 96% | View |
| BFC247049124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 250VDC RADIAL | 96% | View |
| MKP385412016JC02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 160VDC RADIAL | 96% | View |
| BFC236747124 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 250VDC RADIAL | 96% | View |
| MKP385412016JCI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.12UF 5% 160VDC RADIAL | 96% | View |
| 160124K630M-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.12UF 10% 630VDC RAD | 80% | View |
Submit your RFQ for ECQ-B2124JF and get a quote within 24 hours.
