Panasonic Electronic Components
CAP FILM 5600PF 5% 50VDC RADIAL

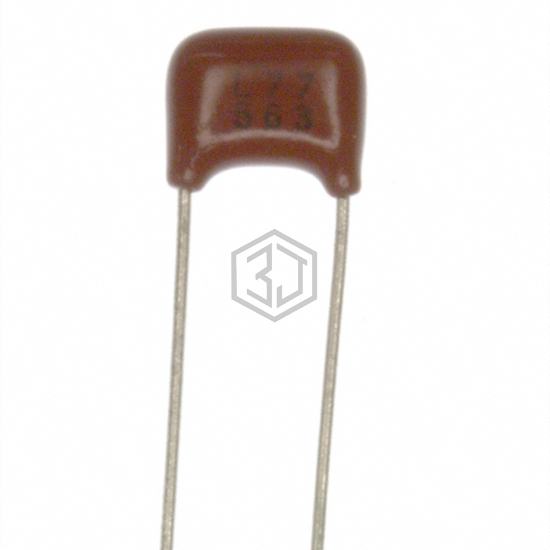

ECQ-B1H562JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 5600PF 5% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 50V, package / case Radial.
In Stock: 9,764
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.276" L x 0.118" W (7.00mm x 3.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B1H562JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-UBAF562VA | Panasonic Electronic Components | CAP FILM 0.0056UF 20% 300VAC RAD | 100% | View |
| BFC233868107 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5600PF 20% 1KVDC RADIAL | 71% | View |
| BFC246755562 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5600PF 10% 400VDC RAD | 71% | View |
| MKP385256063JB02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5600PF 5% 630VDC RADIAL | 71% | View |
| BFC237514562 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5600PF 5% 630VDC RADIAL | 71% | View |
| BFC238556562 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5600PF 5% 1.6KVDC RAD | 71% | View |
