Panasonic Electronic Components

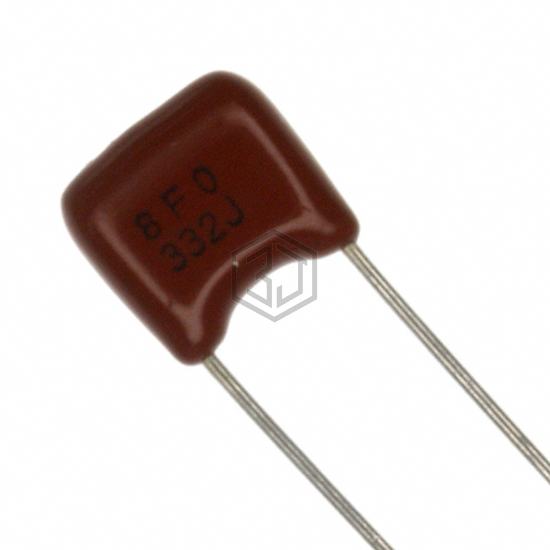

CAP FILM 3300PF 5% 50VDC RADIAL
ECQ-B1H332JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 3300PF 5% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 50V, package / case Radial.
In Stock: 1,898
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.276" L x 0.118" W (7.00mm x 3.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B1H332JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-UBAF332VB | Panasonic Electronic Components | CAP FILM 0.0033UF 10% 300VAC RAD | 100% | View |
| BFC237059332 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 5% 400VDC RADIAL | 71% | View |
| 150332K1000CB | Cornell Dubilier Electronics (CDE) | CAP FILM 3300PF 10% 1KVDC AXIAL | 71% | View |
| MKP385E2332BKIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 10% 2.5KVDC RAD | 71% | View |
| R60QF1330GY01J | KEMET | CAP FILM AUTOMOTIVE | 71% | View |
| MKS4U013304B00JI00 | WIMA | CAP FILM 3300PF 5% 2KVDC RADIAL | 71% | View |
Submit your RFQ for ECQ-B1H332JF and get a quote within 24 hours.
