Panasonic Electronic Components

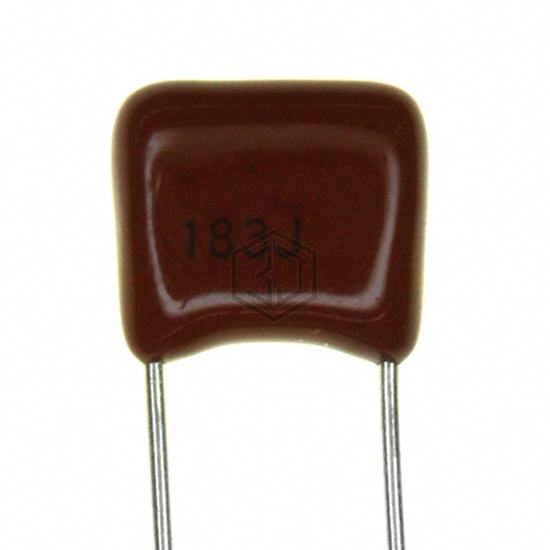

CAP FILM 0.018UF 5% 50VDC RADIAL
ECQ-B1H183JF3 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.018UF 5% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 50V, package / case Radial.
In Stock: 5,005
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.018 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.295" L x 0.118" W (7.50mm x 3.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B1H183JF3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKT1817318015G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 10% 100VDC RAD | 88% | View |
| BFC237045183 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 10% 250VDC RAD | 71% | View |
| DPFF2S18J-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.018UF 5% 250VDC RAD | 71% | View |
| BFC237146183 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.018UF 5% 250VDC RAD | 71% | View |
| ECW-HA3C183H4 | Panasonic Electronic Components | CAP FILM 0.018UF 3% 1.6KVDC RAD | 71% | View |
| ECQ-E10183KF | Panasonic Electronic Components | CAP FILM 0.018UF 10% 1KVDC RAD | 71% | View |
Submit your RFQ for ECQ-B1H183JF3 and get a quote within 24 hours.
