Panasonic Electronic Components
CAP FILM 10000PF 5% 50VDC RADIAL

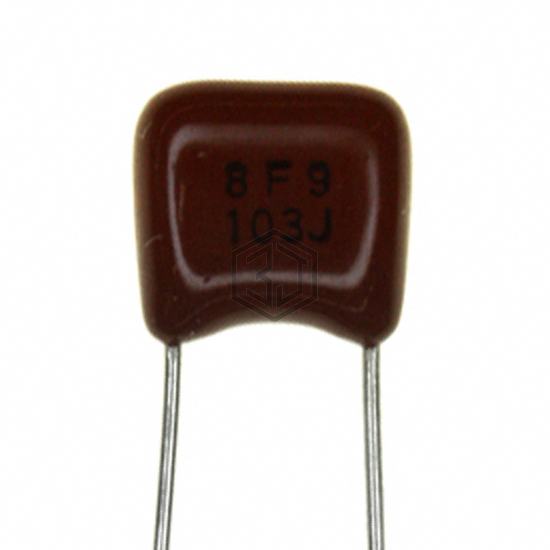

ECQ-B1H103JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 10000PF 5% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 50V, package / case Radial.
In Stock: 6,045
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.276" L x 0.118" W (7.00mm x 3.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B1H103JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECH-S1H103GZ | Panasonic Electronic Components | CAP FILM 10000PF 2% 50VDC RADIAL | 100% | View |
| MKS2C021001A00KSSD | WIMA | CAP FILM 10000PF 10% 63VDC RAD | 96% | View |
| RSBEC2100CK00M | KEMET | CAP FILM RAD POLYPROP | 88% | View |
| MKS2F021001A00JSSD | WIMA | CAP FILM 10000PF 5% 250VDC RAD | 71% | View |
| BFC236853103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 10% 400VDC RAD | 71% | View |
| R75RI210050H3J | KEMET | CAP FILM 10000PF 5% 1.25KVDC RAD | 71% | View |
Submit your RFQ for ECQ-B1H103JF and get a quote within 24 hours.
