Panasonic Electronic Components

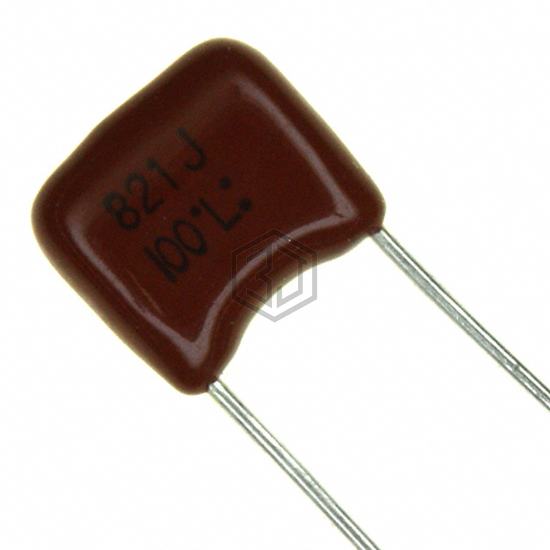

CAP FILM 820PF 5% 100VDC RADIAL
ECQ-B1821JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 820PF 5% 100VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 100V, package / case Radial.
In Stock: 9,237
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.283" L x 0.118" W (7.20mm x 3.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B1821JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PHE450KK3820JR05 | KEMET | CAP FILM 820PF 5% 400VDC RADIAL | 75% | View |
| BFC237548821 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 820PF 5% 2KVDC RADIAL | 71% | View |
| MKP385182160JC02H0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 820PF 5% 1.6KVDC RADIAL | 71% | View |
| MKP383182063JCM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 820PF 5% 630VDC RADIAL | 71% | View |
| MKP385182200JD02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 820PF 5% 2KVDC RADIAL | 71% | View |
| MKP385182160JDA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 820PF 5% 1.6KVDC RADIAL | 71% | View |
Submit your RFQ for ECQ-B1821JF and get a quote within 24 hours.
