Panasonic Electronic Components
CAP FILM 0.47UF 5% 100VDC RADIAL

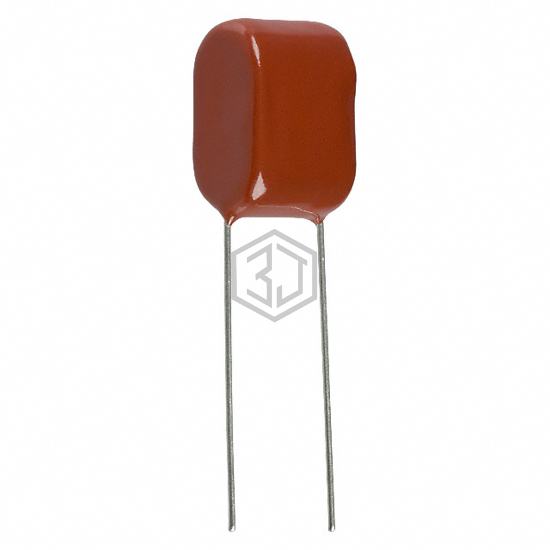

ECQ-B1474JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.47UF 5% 100VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 100V, package / case Radial.
In Stock: 2,002
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.453" W (13.00mm x 11.50mm) |
| Height - Seated (Max) | 0.795" (20.20mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B1474JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKS4G034704F00KSSD | WIMA | CAP FILM 0.47UF 10% 400VDC RAD | 75% | View |
| PWS1633470KJ | Nichicon | FILM CAP CYLINDRICAL AXIAL | 71% | View |
| R41BW347050T0K | KEMET | CAP FILM 0.47UF 10% 1.5KVDC RAD | 71% | View |
| R71VI347050H6K | KEMET | FILM, RADIAL, PULSE, SINGLE META | 71% | View |
| DMM6P47K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.47UF 10% 630VDC RAD | 71% | View |
| 75913-22 | Iskra | KNB1560 U47 10% 275V L3.5 R15 | 71% | View |
Submit your RFQ for ECQ-B1474JF and get a quote within 24 hours.
