Panasonic Electronic Components
CAP FILM 0.022UF 5% 100VDC RAD

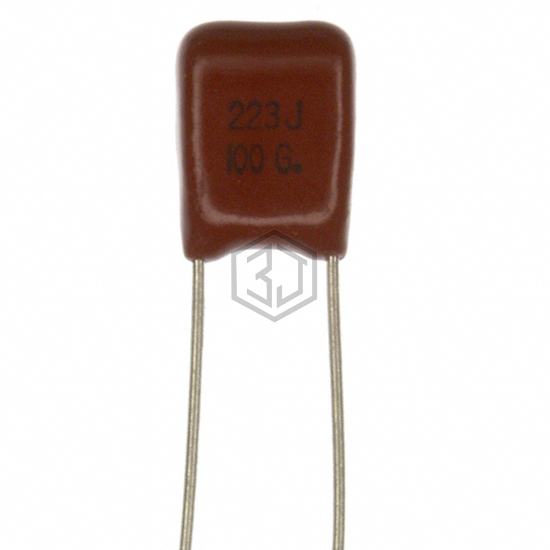

ECQ-B1223JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.022UF 5% 100VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 100V, package / case Radial.
In Stock: 8,479
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.022 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.295" L x 0.177" W (7.50mm x 4.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B1223JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32022B3223M189 | EPCOS - TDK Electronics | CAP FILM 0.022UF 20% 300VAC RAD | 100% | View |
| QXP2G223KRPT | Nichicon | CAP FILM 0.022UF 10% 400VDC RAD | 75% | View |
| ECW-FD2J223KB | Panasonic Electronic Components | CAP FILM 0.022UF 10% 630VDC RAD | 71% | View |
| R413I2220CKM1K | KEMET | CAP FILM 0.022UF 10% 1KVDC RAD | 71% | View |
| PHE450RD5220JR06L2 | KEMET | CAP FILM 0.022UF 5% 1.6KVDC RAD | 71% | View |
| BFC238360223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 2KVDC RADIAL | 71% | View |
Submit your RFQ for ECQ-B1223JF and get a quote within 24 hours.
