Panasonic Electronic Components

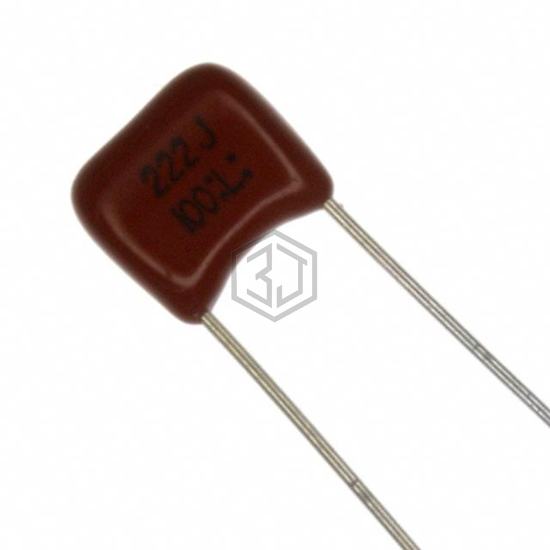

CAP FILM 2200PF 5% 100VDC RADIAL
ECQ-B1222JF is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2200PF 5% 100VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 100V, package / case Radial.
In Stock: 8,627
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.283" L x 0.118" W (7.20mm x 3.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECQ-B1222JF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R82MC1220AA50J | KEMET | CAP FILM 2200PF 5% 400VDC RADIAL | 75% | View |
| R413F12204000K | KEMET | CAP FILM 2200PF 10% 1KVDC RADIAL | 71% | View |
| R73TI1220SE00K | KEMET | CAP FILM 2200PF 10% 1.6KVDC RAD | 71% | View |
| DPPM12D22K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 2200PF 10% 1.2KVDC RAD | 71% | View |
| BFC233666222 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2200PF 20% 1KVDC RADIAL | 71% | View |
| R749N1220AA00J | KEMET | CAP FILM METAL RAD POLYPROP | 71% | View |
Submit your RFQ for ECQ-B1222JF and get a quote within 24 hours.
