Panasonic Electronic Components

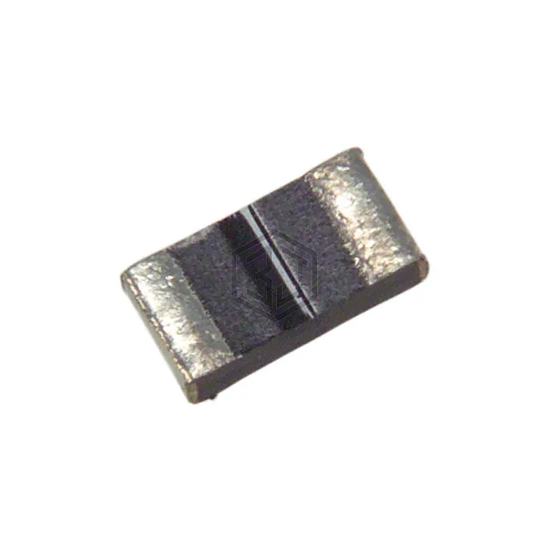

CAP FILM 0.22UF 10% 25VDC 1206
ECP-U1E224KB5 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.22UF 10% 25VDC 1206. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating - dc 25V, package / case 1206 (3216 Metric).
In Stock: 1,124
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 25V |
| Dielectric Material | Acrylic, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
ECP-U1E224KB5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECH-U1H224GC9 | Panasonic Electronic Components | CAP FILM 0.22UF 2% 50VDC 2416 | 88% | View |
| 50ST224MA13216 | Rubycon | CAP FILM 0.22UF 20% 50VDC 1206 | 88% | View |
| SMDTC03220TA00KS00 | WIMA | CAP FILM 0.22UF 10% 40VAC 2824 | 84% | View |
| SMDND03220QA00KP00 | WIMA | SMD-PEN 0.22 F 100 VDC 5.7X5.1X3 | 75% | View |
| ECW-U2224KCV | Panasonic Electronic Components | CAP FILM 0.22UF 10% 250VDC 2825 | 71% | View |
| ECW-U1274KC9 | Panasonic Electronic Components | CAP FILM 0.27UF 10% 100VDC 2820 | 54% | View |
Submit your RFQ for ECP-U1E224KB5 and get a quote within 24 hours.
