Panasonic Electronic Components

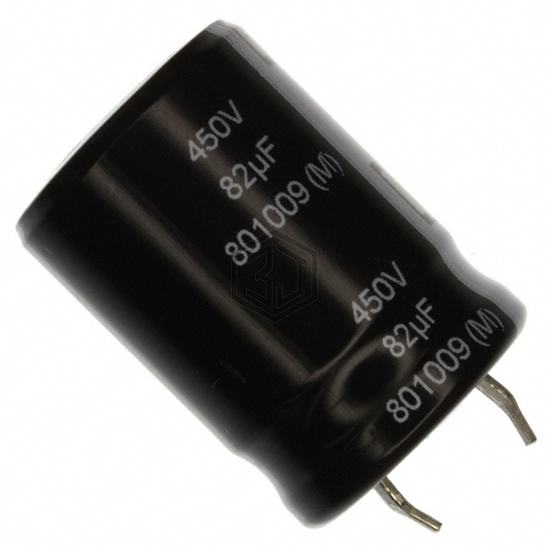

CAP ALUM 82UF 20% 450V SNAP
ECO-S2WP820BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 82UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,196
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 2.022Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 830 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.16 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WP820BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL219359829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 500V SNAP | 95% | View |
| 450QXW82MEFR14.5X35 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 88% | View |
| 420MXC82MEFCSN22X30 | Rubycon | CAP ALUM 82UF 20% 420V SNAP | 86% | View |
| 420HXW82MEFR18X20 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 86% | View |
| 400HXW82MEFR10X55 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 86% | View |
| EKXJ401ELL820MK50S | United Chemi-Con | CAP ALUM 82UF 20% 400V RADIAL | 82% | View |
Submit your RFQ for ECO-S2WP820BA and get a quote within 24 hours.
