Panasonic Electronic Components

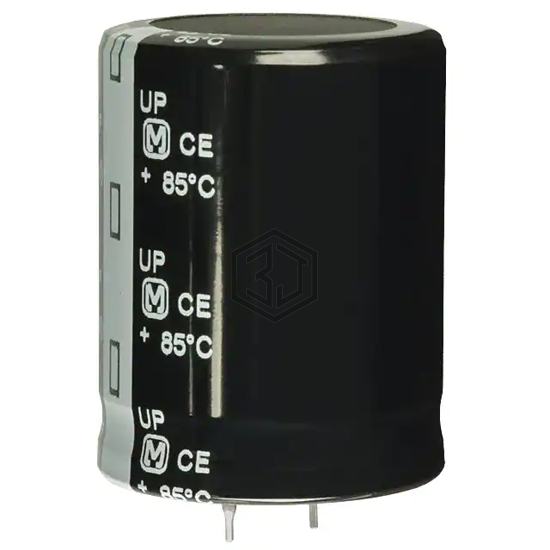

CAP ALUM 470UF 20% 450V SNAP
ECO-S2WP471EX is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,150
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 423mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.542 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WP471EX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43634A9477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 94% | View |
| MAL225919471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 500V SNAP | 92% | View |
| B43504A477M82 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 420V SNAP | 89% | View |
| 420MXK470MEFC35X30 | Rubycon | CAP ALUM 470UF 20% 420V SNAP | 79% | View |
| B43252H2477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 61% | View |
| LKX2D471MESA30 | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 55% | View |
Submit your RFQ for ECO-S2WP471EX and get a quote within 24 hours.
