Panasonic Electronic Components
CAP ALUM 390UF 20% 450V SNAP

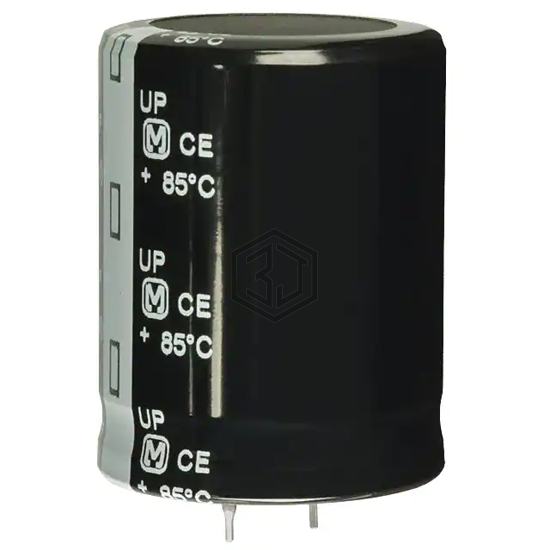

ECO-S2WP391EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,562
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 510mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.24 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.136 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WP391EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43630A5397M087 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 99% | View |
| B43501A5397M62 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 99% | View |
| B43547A6397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 500V SNAP | 95% | View |
| B43644J6397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 500V SNAP | 91% | View |
| E92F421VSN391MA40U | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 83% | View |
| SLP391M315H3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 315V SNAP | 70% | View |
Submit your RFQ for ECO-S2WP391EA and get a quote within 24 hours.
