Panasonic Electronic Components

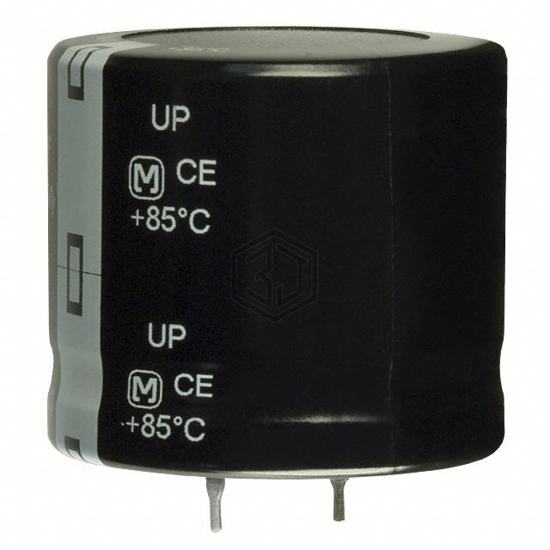

CAP ALUM 220UF 20% 450V SNAP
ECO-S2WP221EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,245
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 754mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.17 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WP221EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL219337221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 450V SNAP | 97% | View |
| B43505C9227M67 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 89% | View |
| B43508B9227M67 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 81% | View |
| LGZ2W221MELC40 | Nichicon | CAP ALUM 220UF 20% 450V SNAP | 80% | View |
| B43504A2227M67 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 250V SNAP | 58% | View |
| B43505E2227M60 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 200V SNAP | 56% | View |
