Panasonic Electronic Components
CAP ALUM 220UF 20% 450V SNAP

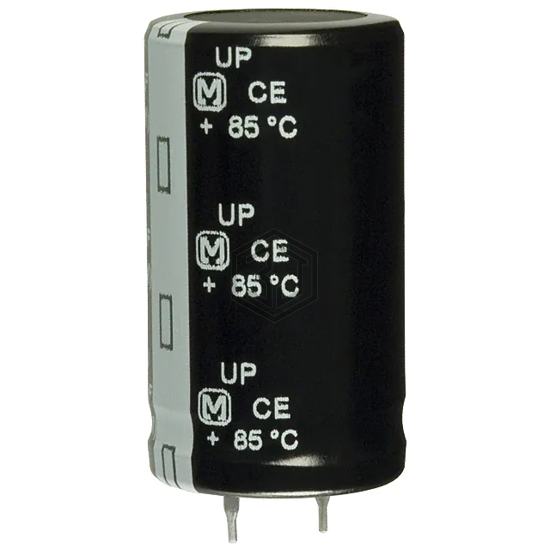

ECO-S2WP221CX is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 6,818
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 754mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.17 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WP221CX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400USG220MEFC25X30 | Rubycon | CAP ALUM 220UF 20% 400V SNAP | 96% | View |
| B43501E0227M007 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 420V SNAP | 95% | View |
| LQS2W221MELB30 | Nichicon | CAP ALUM 220UF 20% 450V SNAP | 87% | View |
| MAL215956221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 400V SNAP | 85% | View |
| EKMS421VSN221MP45S | United Chemi-Con | CAP ALUM 220UF 20% 420V SNAP | 85% | View |
| LAS2G221MELB30 | Nichicon | CAP ALUM 220UF 20% 400V SNAP | 81% | View |
Submit your RFQ for ECO-S2WP221CX and get a quote within 24 hours.
